Biliary Malignancies: Multislice-CT or MRI?
Prof. Wolfgang Schima, MD
Department of Radiology, Univ. of Vienna, Austria.
(Радиология в медицинской диагностике [современные технологии] 2003: 91-94)

Abstract.
Cholangiocarcinoma is the most common malignant bile duct and the second most common primary malignant tumor in the liver. It can be classified as intrahepatic (peripheral) or extrahepatic. Extrahepatic cholangiocarcinomas originate most often from the main hepatic duct and confluence (referred to as Klatskin tumor). The patients usually present with jaundice because of biliary obstruction. Prognosis of hilar cholangiocarcinoma is poor, because most tumors are unresectable at the time of diagnosis. Surgical exploration should only be undertaken, when there is a potential for curative resection shown by radiologic imaging.
ERCP demonstration of Klatskin tumors is often incomplete due to incomplete filling of bile ducts peripheral to the stenosis. MR imaging and helical CT are the methods of choice in the diagnosis and staging of hilar cholangiocarcinoma. MR cholangiography in conjunction with MRI and MRA provides information of tumor size, bile duct involvement, and vascular compromise, and thus, resectability of the tumor. Multi-phasic contrast-enhanced thin-section helical CT may show Klatskin tumors with a sensitivity of up to 100%. Tumors are better seen on arterial-dominant phase than on portal venous phase scans (sensitivity, 100% vs. 86%). However, single slice CT is not accurate for assessing resectability (accuracy, 60%), because proximal tumor extent is largely underestimated. Preliminary experience with multi-slice CT indicates that the extent of bile duct involvement may be better displayed due to multi-planar imaging capabilities. Curved planar reconstruction of multi-slice CT data sets along the portal vein and the bile ducts reveal tumor involvement.
Intrahepatic cholangiocarcinomas have a non-specific imaging appearance. Because of abundant fibrous stroma, they exhibit little contrast enhancement during CT or MRI scanning in the early phase with delayed accumulation of contrast material. Although not pathognomonic, the presence of bile duct dilatation within the tumor and retraction of the liver capsule adjacent to the tumor are suggestive of the diagnosis.
In conclusion, the role of contrast-enhanced MRI with MR cholangiography and multi-slice CT in the detection and preoperative staging of cholangiocarcinoma is emphasized.

Introduction.
A number of examination techniques are available for evalation of the biliary tracts. Transabdominal ultrasound is the primary non-invasive technique for assessing patients with suspected bile duct and gallbladder pathology. An experienced examiner can assess intrahepatic and extrahepatic bile ducts in the vast majority of patients, regardless of the body habitus. The presence of dilated bile ducts as an indicator of biliary obstruction can be reliably seen. However, the underlying etiology of obstruction in the distal common bile duct may be obscured at ultrasound.

MR cholangiopancreatography (MRCP) is now the established non-invasive method of choice for evaluation of biliary obstruction. MRCP is performed with heavily T2-weighted pulse sequences during one breathhold or with free breathing. Usually, the biliary tract is first localized with radially oriented single-shot thick-slab images. Then a multi-slice HASTE pulse sequence in coronal/oblique plane provides thin (3–5 mm) source images of the biliary and pancreatic duct system. Axial HASTE source images may help in the differentiation between intraluminal ductal stones and air bubbles due to aerobilia, because intraductal stones may be surrounded by fluid, whereas air bubbles float on the fluid in the non-dependent portion of the bile duct.

Computed tomography has been the standard imaging technique to evaluate liver and pancreatic tumors in many institutions. However, it has two major limitations with regard to bile duct imaging. Bile duct stones may not be seen, unless calcified and bile duct tumors are difficult to differentiate. However, the evolution of multi-slice CT has brought major advances in bile duct images with CT. The acquisition of a MSCT data sets allows 3D-reconstruction of the scanned volume in coronal or oblique orientation which is particularly helpful for visualization of the biliary system.

Cholangiocarcinoma.
Cholangiocarcinomas arise from any portion of the intrahepatic or extrahepatic bile duct epithelium. They are classified as intrahepatic (peripheral) cholangiocarcinoma or extrahepatic cholangiocarcinoma. Intrahepatic cholangiocarcinomas are the second most common primary malignancy of the liver. Extrahepatic cholangiocarcinomas originate most often from the main hepatic duct and confluence (often referred to as Klatskin tumor) and become clinically apparent because of biliary obstruction.

Klatskin tumor.
Hilar cholangiocarcinomas (Klatskin tumors) are categorized according to the Bismuth classification (Fig. 1): a type I tumor involves the main hepatic duct below the bifurcation, a type II tumor affects the main hepatic duct bifurcation. A type III tumor involves segmental ducts beyond the primary hepatic duct bifurcation in one liver lobe (type IIIa: right lobe, type IIIb: left lobe). Type IV tumors involve segmental ducts in both liver lobes. Prognosis of hilar cholangiocarcinoma is poor, with most of the tumors being unresectable at the time of diagnosis. Thus, surgical exploration should only be undertaken, when there is a potential for curative resection shown by imaging.

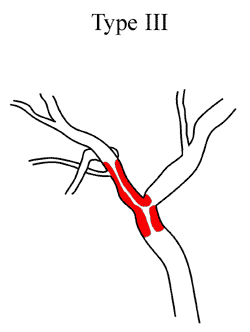

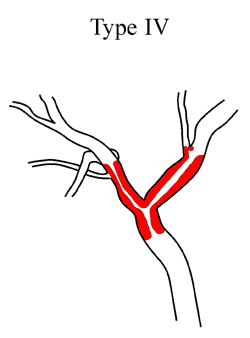

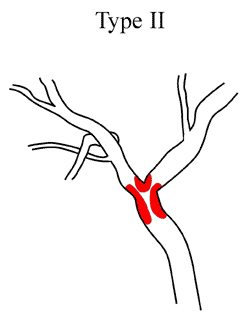

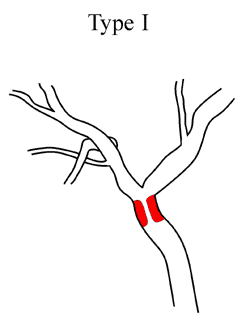

Fig. 1. Bismuth classification of hilar cholangiocarcinomas (Klatskin tumors).

Radiologic evaluation.
Diagnosis of Klatskin tumors was a domain of ERCP, which may show of bile duct involvement and histologic proof. However, ERCP demonstration of bile duct anatomy is often incomplete due to incomplete ductal filling. MR imaging and helical CT are useful in diagnosis and staging of Klatskin tumors. MRCP in conjunction with contrast-enhanced MRI and MRA allows assessment of tumor size, bile duct involvement (Fig. 2), and vascular infiltration, which is crucial for assessment of resectability. Contrast-enhanced thin-section helical CT may show Klatskin tumors with a sensitivity of up to 100%. Tumors are better seen on arterial-dominant than on portal venous phase scans (sensitivity 100% vs. 86%). However, single-slice helical CT is still inaccurate for assessing resectability (accuracy, 60%), because proximal tumor extension is underestimated. Preliminary experience with multi-slice CT indicates that tumor extension may be better displayed due to 3D-imaging capabilities. Curved planar reconstructions along the main, right, and left portal vein and along the intrahepatic bile ducts show the extent of tumor involvement more precisely. In contrast to “conventional” axial images, they reveal a “pseudosurgical” view of the tumor growth pattern.


[Увеличить]

Fig. 2. MRCP. Klatskin tumor.

Intrahepatic (peripheral) cholangiocarcinoma.
Peripheral cholangiocarcinoma is a primary adenocarcinoma of the liver arising from the epithelium of the small bile ducts. Intrahepatic cholangiocarcinomas have a non-specific imaging appearance. Because of the presence of abundant fibrous stroma, these tumors most often show little contrast enhancement at CT or MRI scanning in the early phase, but delayed accumulation of contrast material. Although being non-specific, the presence of bile duct dilatation within the tumor and liver capsule retraction adjacent to the tumor are suggestive of the diagnosis .

Conclusion.
In conclusion, detection and accurate staging of Klatskin tumor is improved by multi-phasic helical CT scanning and MR imaging. Curved-planar reconstructions from multi-slice CT data sets with thin collimation may further improve our ability to diagnose vascular involvement. MR cholangiography in conjunction with contrast-enhanced MRI provide 3D-images of the biliary tracts that facilitate planning of surgery or guide palliative drainage.
